COMBINED EYE GLASS REFLEX TYPE

Name: COMBINED EYE GLASS REFLEX TYPE
Brand: New Trade Links
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

COMBINED EYE GLASS REFLEX TYPE Specification

Focus System
Rack and pinion gear, dual adjustment.

View Head
Combined Eye Glass Reflex Type, monocular.

Spare Parts
Eyepieces, stage clips, LED module available on request.

Features
Combined eye glass reflex viewing, precise mechanical focusing, robust build, portable for field and bench work.

Theory
Optical reflex mechanism combining direct imaging and eyeglass-type viewing for enhanced clarity.

Drawtube
Standard monocular drawtube for effective optical alignment.

Sensor
Integrated photodiode sensor for precise light measurement.

Resolution
High precision display, up to 0.01 mm readability.

Interface
Mechanical with provision for digital output adapters.

Frame Rate
Up to 30 fps (with optional digital output).

Focal Distance
41 mm nominal focal distance.

Magnification
10x primary magnification lens system.

Dimensions
Approx. 120 mm x 60 mm x 40 mm.

Focus Range
Coarse and fine focus system, total travel: 20 mm (coarse), 1 mm (fine).

Eyepieces
Widefield 10x/18 mm standard eyepieces.

Eyepiece Tube
Inclined monocular tube, 45 angle.

Illumination
Built-in LED illuminator with adjustable brightness.

Coarse Adjustment Range
Up to 20 mm travel.

Fine Adjustment Range
Up to 1 mm travel for fine focus.

Working Stage
70 mm x 50 mm mechanical stage with slide clips.

Still Image Capture Resolution
1.3 MP (with digital model only).

Video Capture Resolution
720p (with digital model only).

Image Format
Supports standard analog visual output, optional USB digital.

Interpupillary Distance
Fixed for monocular; adjustable with eyeglass bracket.

Objective Achromatic
Standard achromatic objective, 10x.

Condenser
NA 0.65 Abbe condenser, with diaphragm.

Light Source
LED, 3V, 0.1W.

Operating Temperature
0C to 40C.

Application
Precision metrology, industrial inspection, field microscopy.

Weight
Approx. 300 grams.

Power Supply
Integrated battery compartment, 2x AAA batteries (with LED model).

Body Material
Heavy-duty metal alloy frame, black chrome finish.

Accessories Included
Carrying case, lens cleaning cloth, operation manual.

COMBINED EYE GLASS REFLEX TYPE About

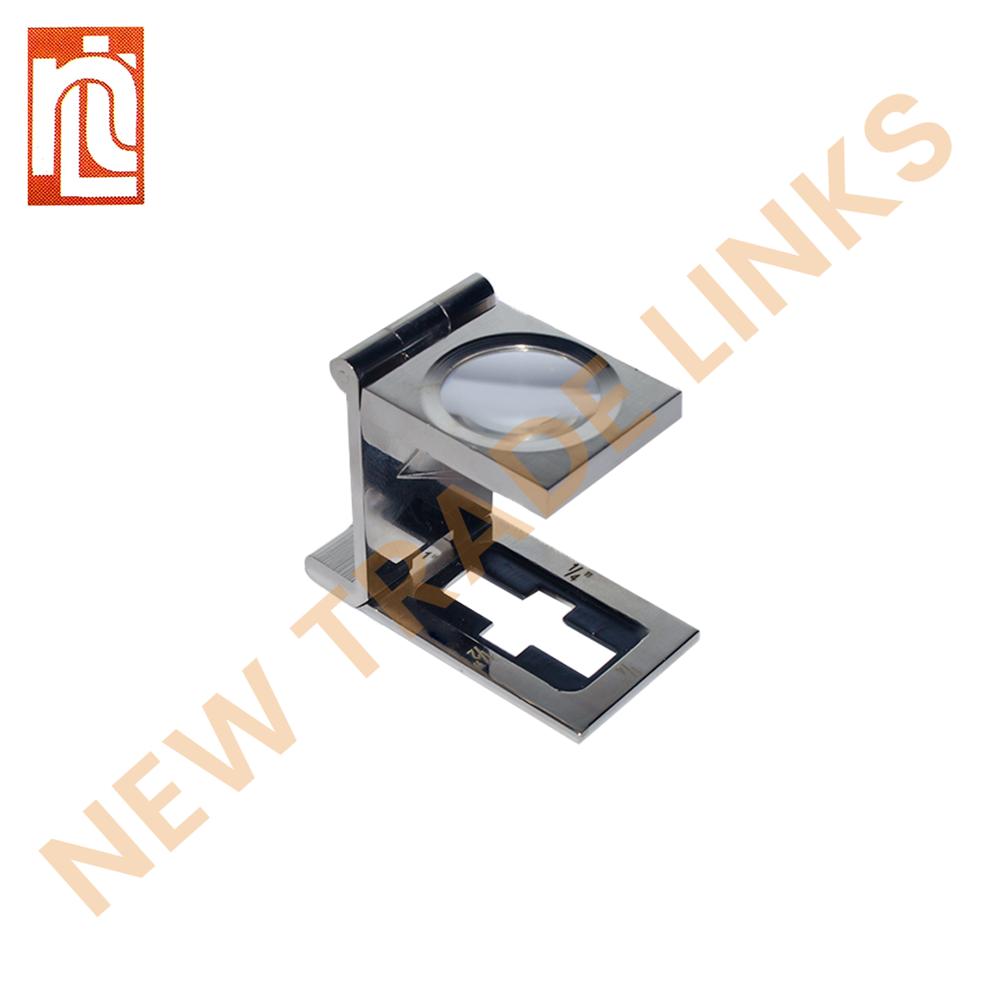

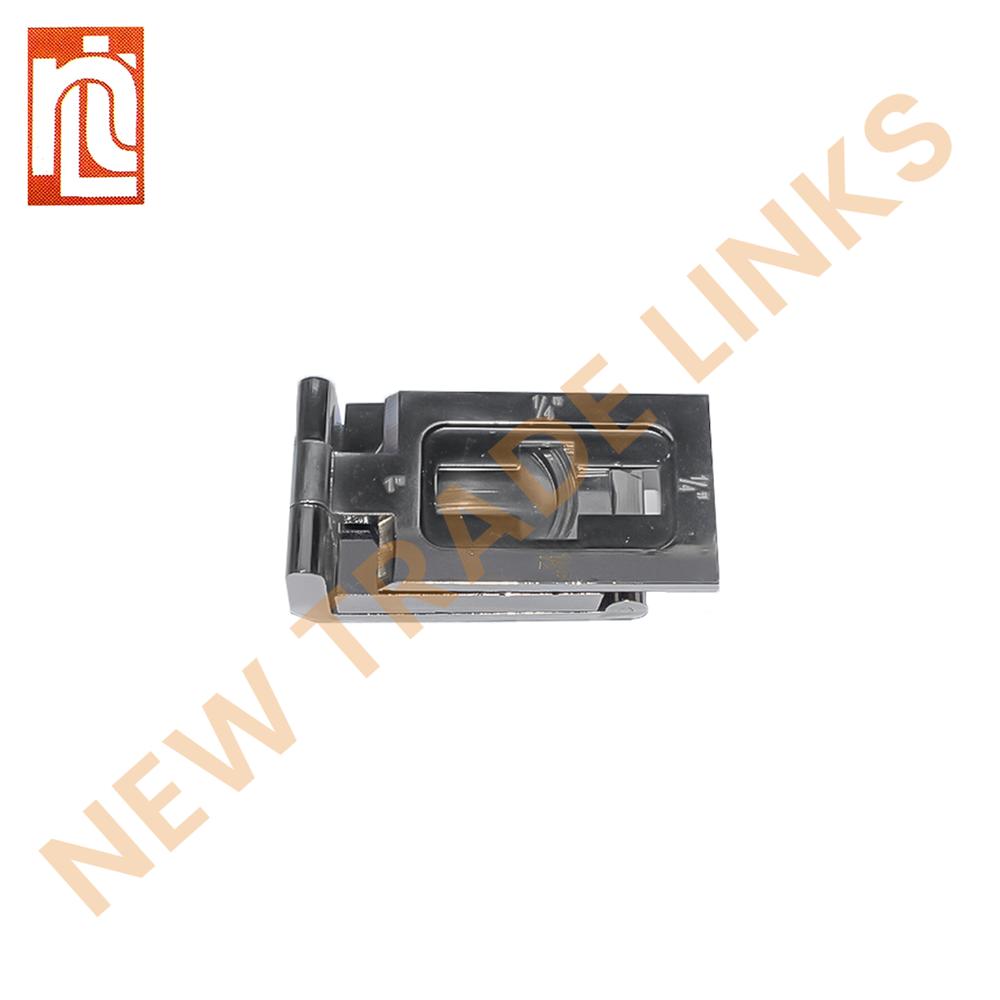

A combined eyeglass reflex type describes a specialized optical magnifying tool or an industrial inspection glass. It features a folding or portable frame with a built-in reflex magnifying lens system used for fine quality control tasks like counting textile threads, grading gemstones, or checking screen mesh sizes

Core Design & Features

Optics: Utilizes a dual or reflex lens arrangement providing clear, fixed-focus magnification (typically 5x up to 30x).

Build: Often housed in a durable metal or brass pocket-size casing with a foldable stand.

Function: Combines direct surface illumination and angular reflection to make fine details, lines, and apertures stand out sharply against a background.
